The main feature of the Whisper series is the ETD (Energy Transfere Device). This unit produces out of a large flow of Water with a pressure of 7 – 10 Bar, a pressure of 40-55 Bar.

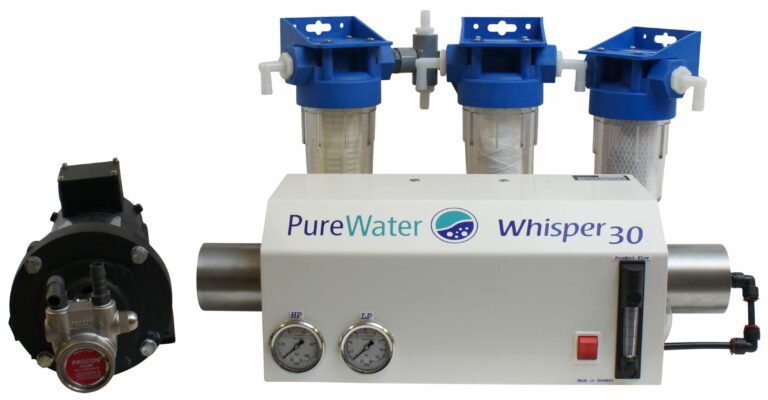

The economic version for small boats is the Whisper 30 integral. The Membrane is integrated in the ETD.
Die COMPACT Anlagen der Serie Whisper 60/ 90 haben alle eine automatische Produktwasserkontrolle, d.h. das Produktwasser wird erst frei gegeben, wenn der voreingestellte Wert unterschritten wird. Whisper 60 COMPACT hat 2 Membranen 2521, Whisper90 COMPACT hat 3 Membranen 2521.
All Whisper COMPACT Versions are equipped with an automatic product water control. Means, that the product water is guided into tank, when the water quality is better than the pre-set value. Whisper 60 COMPACT has 2 Membranes 2521, Whisper 90 COMPACT has 3 Membranes 2521.
WATER PRO Compact S auf dem WHISPER Prinzip, d.h. die Druckerhöhung wird durch einen Energy Transfer Device (ETD) hergestellt.
Die S-60 produziert 60l/h, die S-90 90L/h. Lieferbar in 12/24V DC und 230V AC. Beide Geräte haben eine Spülvorrichtung auf Knopfdruck. Die Geräte zeichnen sich durch eine sehr kompakte Bauweise aus.
The COMPACT S-60/90 based on the WHISPER principle, which means, that the Pressure is made by an Energy Transfer Device (ETD).
The S-60 produces 60L/h, the S-90 90L/h. Available with 12/24 DC and 230V AC power supply. Both units have push to flush feature. Both units are extremely compact.
You like it COMPACT? So look at the SEA STAR COMPACT version. Easy to install. All build in a sea water resistant powdercoated Aluminium frame. All COMPACT versions are equipped with an automatic salinity control for your comfort. The PH Stabilizer makes the product water great tasting.
Die A 200/300 ist ein Spitzengerät unter den vollautomatischen Entsalzungsanlagen. Durch die Energie Rückgewinnung erreichen diese Anlagen Spitzenwerte im Stromverbrauch. A-200: 200L/h mit 0,92KW A-300: 300L/h mit 1,38KW
Alle diese Anlagen sind mit 230V 50/60Hz, 400V 50/60Hz und 24V DC lieferbar.
Der vollautomatische Betrieb ist der Normalbetrieb, darüber hinaus kann das Gerät auch im manuellen Mode betrieben werden. Diese Anlage ist besonders für den Betrieb mit Photovoltaik geeignet.
Low consumption watermaker recommended for boat lengths above 18m.
The EFFICIENT series uses the NEW rotating EFFICIENT pump producing from 200 to more than 300 litres per hour with a Revolutionary Energy Recovering System with a significant reduction of power consumption.
The highly automated process as well as the monitoring of pressures, flows, salinity ensure an efficient and self-regulated operation. Despite of the automated operation, a manual operation mode is still available.
Die Anlagen der Serie NO FRILLS sind in folgenden Ausführungen lieferbar:
· STANDARD
· COMFORT ( mit automatischer Produktwasserkontrolle und PH Stabilisator)
· COMPACT ( mit automatischer Produktwasserkontrolle und PH Stabilisator, alles in einem Rahmen )

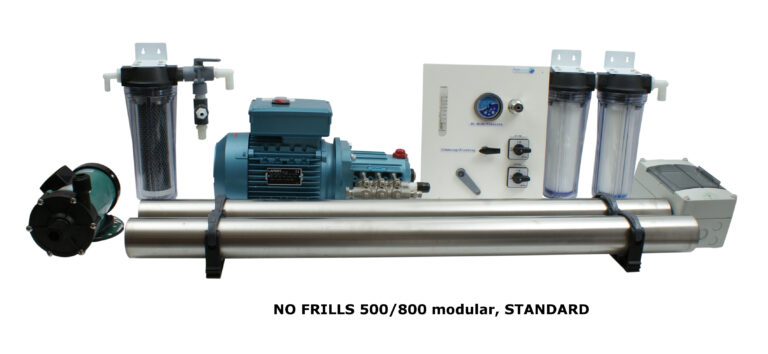

Links sehen Sie die NF 500/800 STANDARD.
The COMPACT Series provides all the features of the COMFORT Series, but all major parts are built in a Frame. Easy to install.
Alle Anlagen sind mit einem High Pressure By-Pass Ventil ausgestattet. D.h. keine umständliche Druckregelung mehr. Der eingebaute Reinigungskreislauf ermöglicht eine Reinigung und Konservierung ohne großen Aufwand.
The COMPACT Series provides all the features of the COMFORT Series, but all major parts are built in a Frame. Easy to install.
Die Eco-Sistems T-2000 gehört zu den revolutionärsten Großanlagen. Mit einer Leistung von 2000 l/h und einem Verbrauch von 5,5KW ist diese Anlage aufgrund der Energierückgewinnung sehr gut für den Einsatz von Photovoltaik geeignet.
Lieferbar mit einer Leistung bis 4000L/h. Ein Einbau in einen Container ist möglich. Diese Anlage arbeitet vollautomatisch und ist mit allen Sicherheitsvorkehrungen ausgestattet.
The Eco-Sistems T 2000 is a revolutionary desalination Plant on the Market. With an output of 2000L/h and an electrical consumption due to the energy recovery system of only 5,5KW, this unit is milestone in seawater desalination. Available size up to 4000L/h.
The unit is working fully automatic and got all safety features and warnings.
Please contact us for a quote.
Durch eine lange Lagerung Ihres produzierten Wasseres in Ihrem Tank kann es, besonders in warmen Regionen, zu Bakterienbildung im Trinkwasser kommen. Wenn Sie den Bakterienfilter CARBOBLOCK vor Ihre Trinkwasserzapfstelle schalten,sind Sie immer sicher, dass Sie Wasser trinken, welches frei von Bakteien ist. Der CARBOBLOCK ist ein Aktivkohlefilter mit einer Membranoberfläche. Wir liefern Ihnen auch das passende Filtergehäuse mit allen gängigen Anschlüssen.
Carboblock is a 5µ cabon filter with a membrane inside. Simply place this filter behind your storage tank – inline. All contamination will be kept out. Replace this filter every season. Filterhousings are available.
Die Brunnenwasseranlage NF 3000 BW hat eine Leistung von 500 – 600 Liter in der Stunde, abhängig vom Salzgehalt des Brunnenwassers. Der Salzgehalt des Brunnenwassers sollte 10.000 ppm nicht überschreiten. Um die Anlagenkonfiguration zu berechnen, benötigen wir immer eine Wasseranalyse des Brunnens. Diese Anlage hat einen OS3030 Controller und arbeitet vollautomatisch. Anschlüsse für Schwimmerschalter des Tanks sind vorhanden. Die Wasserqualität wird im Controller in µs angezeigt. Die Anlage ist mit automatischer Abschaltung bei Wassermangel (Unterdruck) und Überdruck ausgestattet.
The NF 3000 BW is a water purification unit for Well Water with a quality up to 10.000 ppm. The output is between 500-600L/h with a total automatic operation. For setup of the configuration we need always a water analysis of the Well Water. Level switch connections are part of the OS 3030 Controller. Product water quality is indicated in the Controller. Automatic shut down for low pressure and high pressure is a standard feature.
